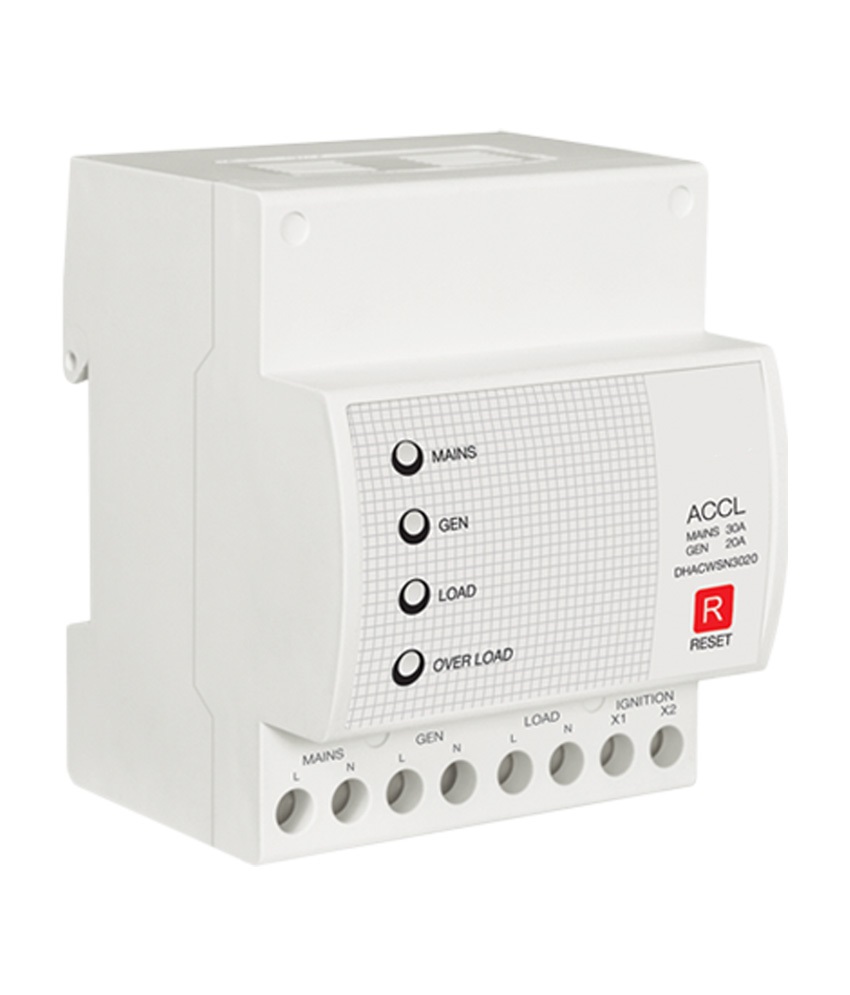

Automatic Source Changeover Current Limiter (ACCL) 4 Module*
ACCL is an electrical transfer switch that switches the load between two sources. It is installed where a backup generator is located, so that the generator may provide temporary electrical power if utility source fails. ACCL is designed to provide power to critical circuits only. It allows for load shielding as prioritization of optional circuit, such as heating /cooling equipment and lighting loads.
| Range | Mains 30A/Gen 1.5A to 20A |
| Type | Automatic |
| Execution (Pole) | Single Pole & Neutral (SPN) |
| Current Limiter | Yes |
| Generator Start Stop | No |

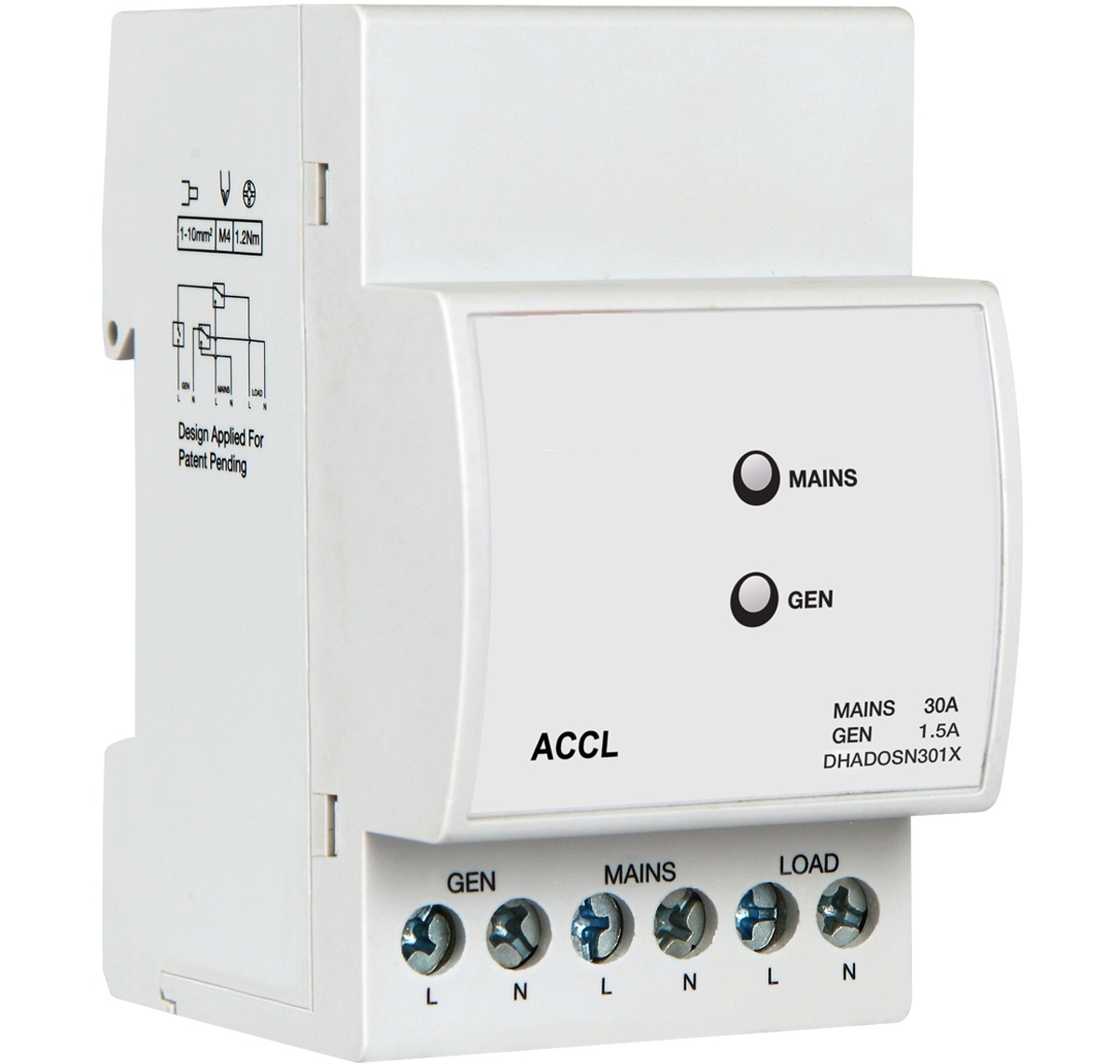

Automatic Source Changeover Current Limiter (ACCL) 3 Module*
An indispensable tool to automate power distribution, protect expensive gensets and prevent fatal risks - The power instability in developing countries along with the inefficient rationalized power distribution creates a need for the alternative source of power, to back up the utility supply, and hence, most of the commercial and residential complexes set-up alternate power sources, such as gensets, to provide efficient back-up for their power needs. However, most of these users of alternate power still depend on manual change-over, which leads to issues such as increased downtime, disruption in key activities as well as critical damage to the expensive equipment and could also prove fatal to the operators.
| Range | Mains 30A/Gen 1.5A to 20A |
| Type | Automatic |
| Execution (Pole) | Single Pole & Neutral (SPN) |
| Current Limiter | Yes |
| Generator Start Stop | No |

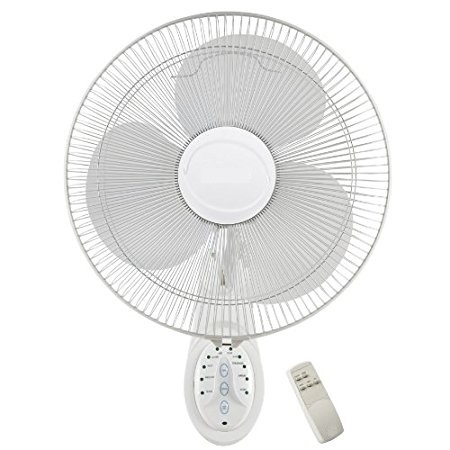

Wall Mounted FAN with Remote*
- High performance motor for better air delivery
- Facility to control wind & nature model
- Jerk free oscillation & smooth running
- Aerodynamically designed balanced heavy duty PP blades
- Fan with built-in I.R. remote control
| Sweep (mm) | 400 |
| Power Input (Watts) | 50 |
| Speed (RPM) | 1360 |
| Air Delivery (CMM) | 72 |

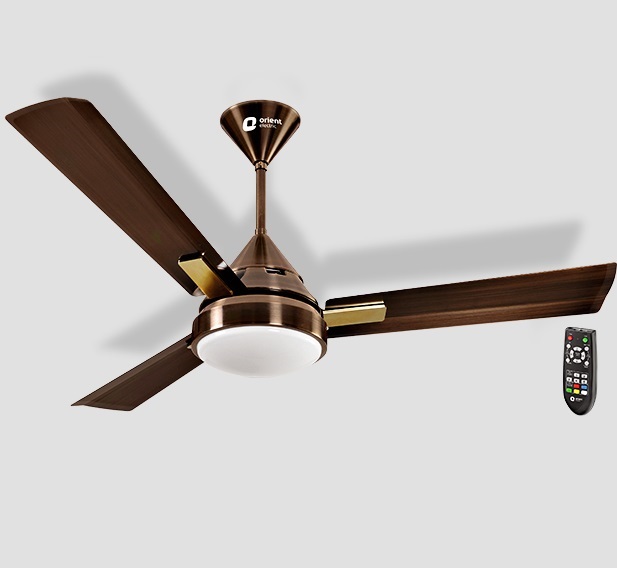

SPECTRA*
- Revolutionary design & one of largest selling LED fan with mood lighting feature.
- Sturdiest & heaviest motor design for lower temperature rise & longer life.
- Extra wide blades for higher air-delivery & thrust.
- Remote control with timer option for comfortable & sound sleep
- Double ball bearing ensures smooth & silent operation
- Complete metal body with electroplated finish for impeccable feel & maintenance free performance.
| Sweep Size | 1200 mm |
| Speed | 320 RPM |
| Air Delivery (Mtr Cu./min.) | 230 |
| Wattage | 70 Watt |

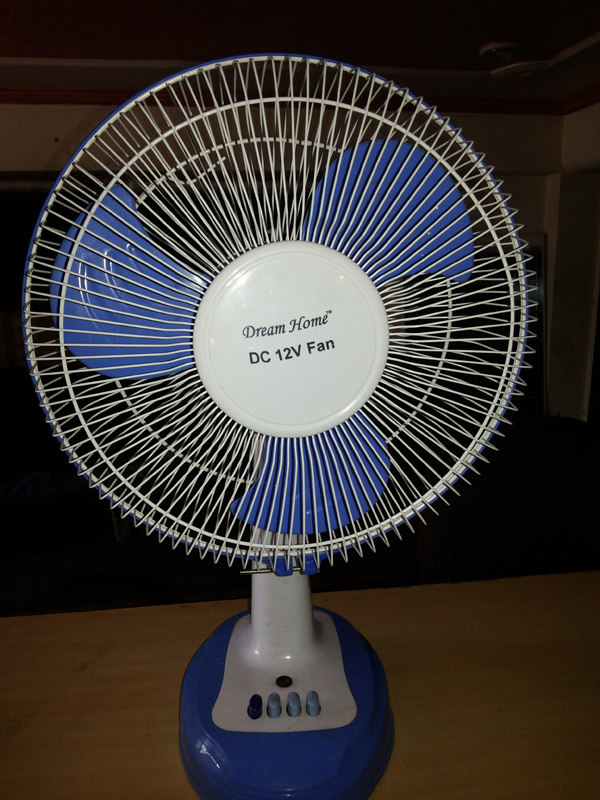

BLDC 12V (Brushless) Fan*
| Rated Voltage | 12V DC |
| Rated Current | 1.0-1.2 AMP |
| Speed | 1500 RPM |
| Wattage | 15 Watt .+/-2% |
| Speed Control | Three |
| Rotation Angel | NO |

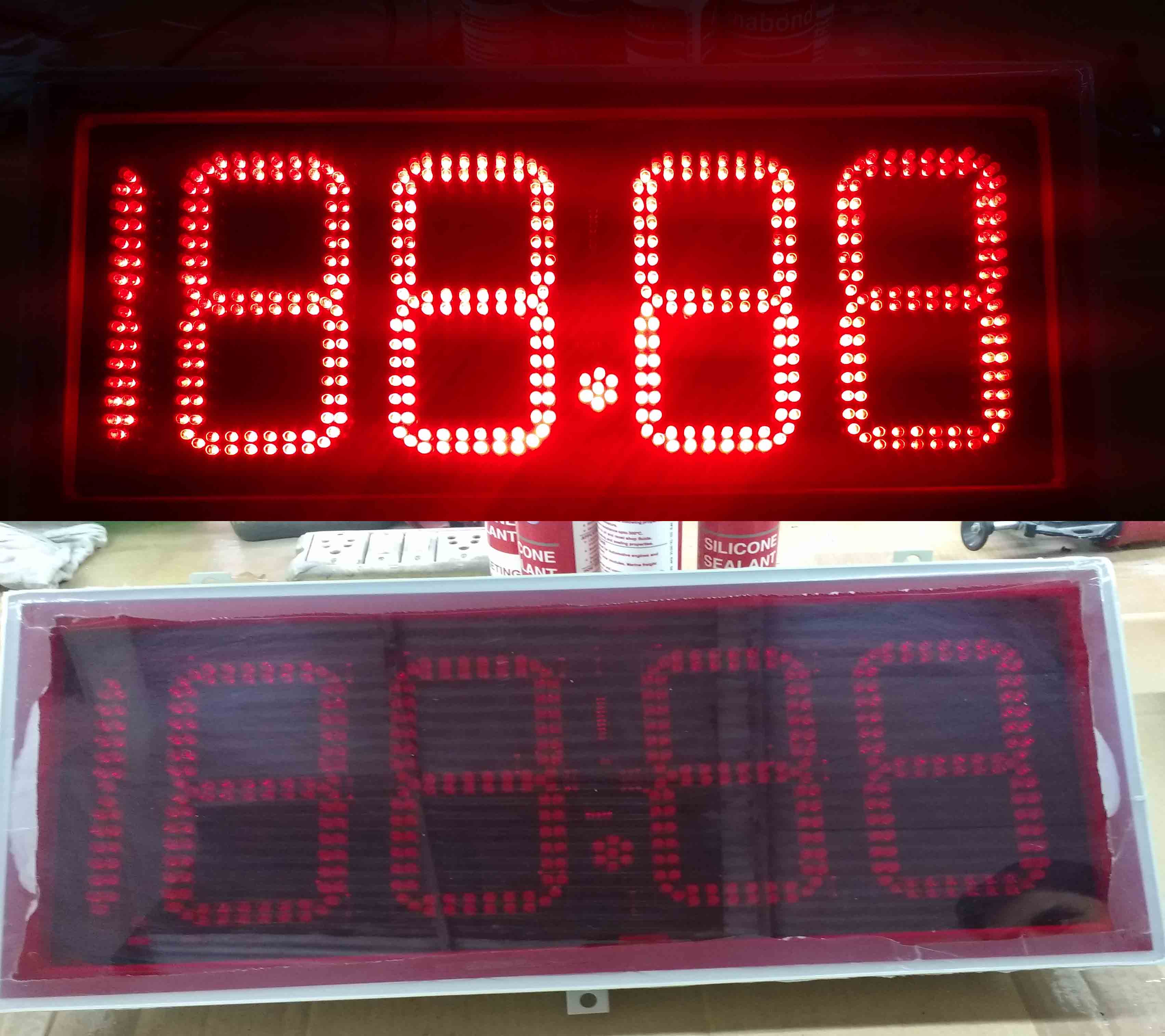

Rate Display Unit*
- Sale Volume – 40 mm nominal -5 digits to read 999.99 litres. Facility of floating decimal to read 9999.9 litres may also be incorporated.
- Unit Rate – 25 mm nominal - 4 digits to read 99.99 rupees per litre with facility of settable decimal to read 999.99 rupees per litre.
With petrol prices shifting so regularly, it is vital that your outdoor signage isn’t just highly visible, but the information should be quick and easy to change too.
We have been producing petroleum digital displays for petrol pylone for over 6 years.
Our digital displays provide clear information from a distance, helping inform customers and encouraging them to use our services.Our Led displays are highly visible during the day and provide a bright light at night.
We supplies digital displays directly to our customers. We design, manufacture, supply and install complete Pylone units and each comes with a factory warranty.
Our digital petrol pylon displays give you the ability to change the information instantly with the help of provided Remote and you are able to change the rate with PC Based Software.

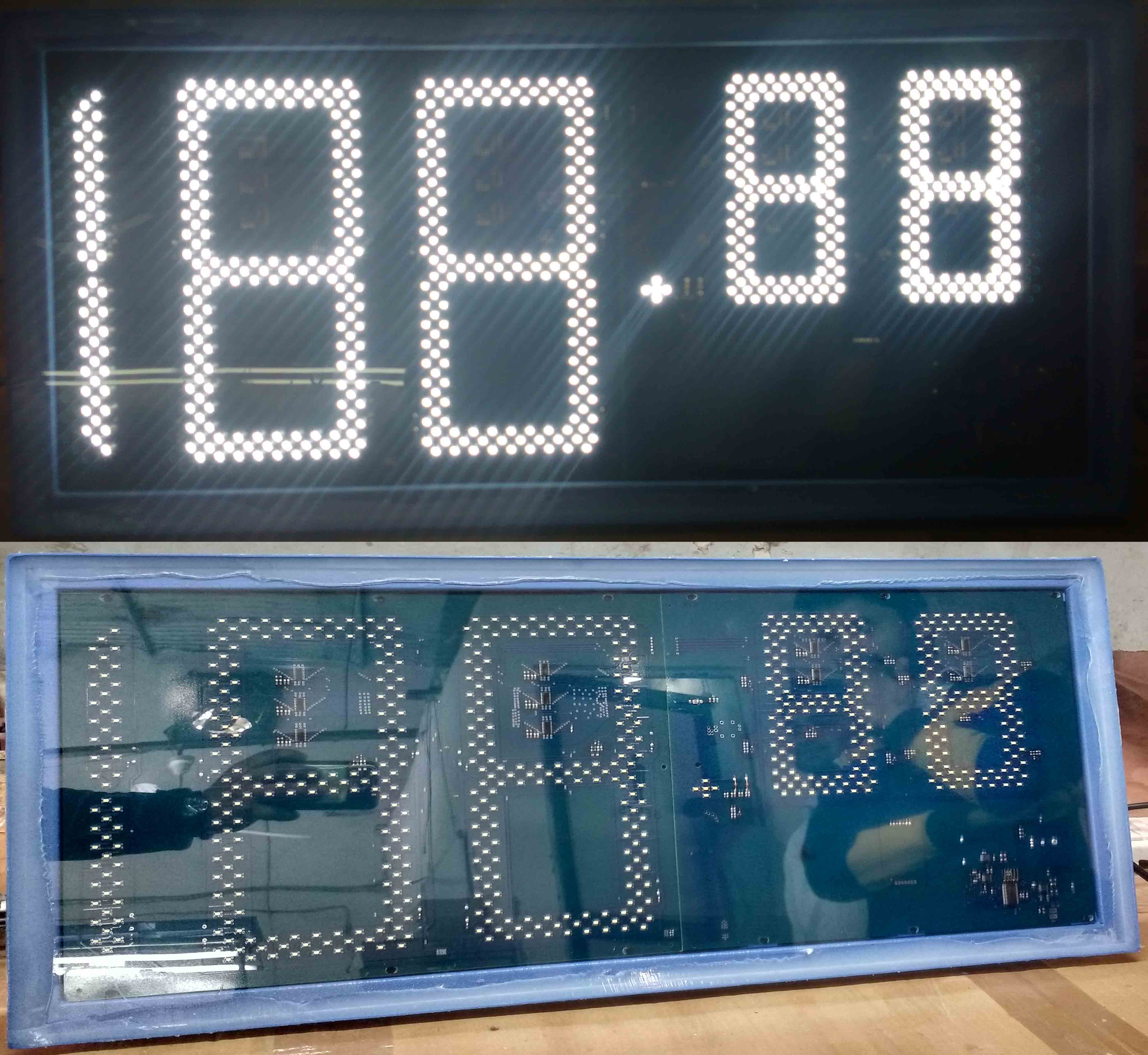

Rate Display Unit*
- Software provides you to change the Rate of Lubricants and generate all fault History related to Pylons.
The main products delivered include Diesel, Petrol, Turbojet, Power, AutoLPG, CNG and lubricants required for various vehicles, which are supplied at the Petrol pumps.
We provide Digital Displays which provide clear information from a distanceand highly visible during the day and night.
Our digital petrol pylon displays gives you the ability to change the information instantly with the help of provided Remote and you are able to change the rate with PC Based Software.
